The Internet is based on structured communication, with each packet having a specific format. That format becomes easier to understand when you study an ipv4 and ipv6 diagram in a simplified way. Most learners are initially confused by the appearance of this structure, as it does not appear to be technical, but you can easily deconstruct the structure and begin to comprehend it rather rapidly. Additionally, IPv4 and IPv6 are used as the foundation of modern-day network systems. However, they differ in the way they enable data organization and delivery. Thus, knowing their headers and fields will assist you in viewing how a conversation amongst devices proceeds without any hustle.
Moreover, these concepts are used by networking professionals in their day-to-day activities. This knowledge is critical whether you are troubleshooting a problem or developing networks. Consequently, all things in this article are well explained using practical illustrations, tabular and insightful comparisons.

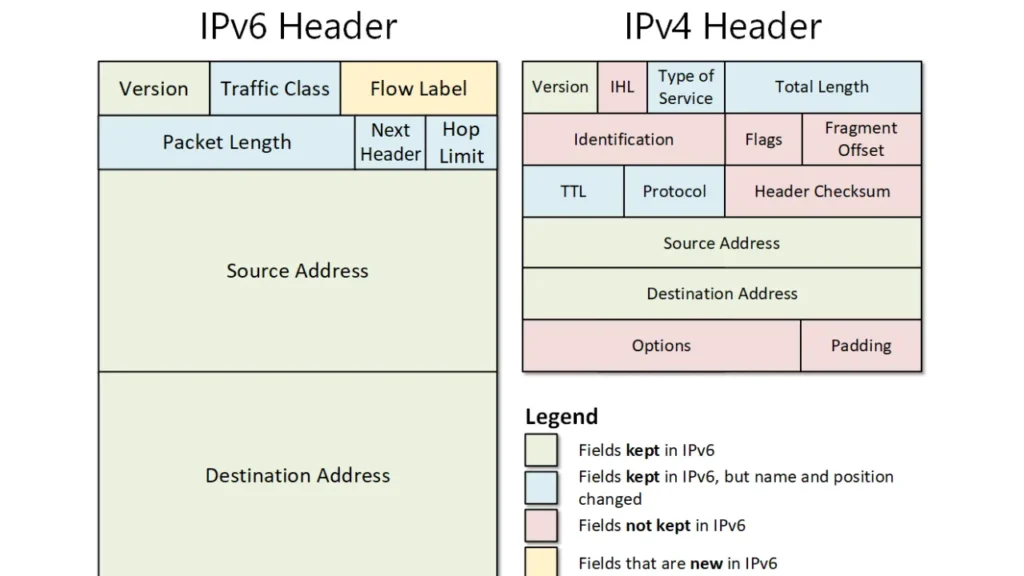

Ipv4 and Ipv6 diagram: Overview with Header Comparison
An ipv4 and ipv6 diagram provides a clear understanding of the format of data packets in two Internet protocols. Although both protocols attempt to transmit data in an efficient manner, they have major differences when it comes to their internal design. IPv4 has a complex header structure with numerous fields, and IPv6 is simpler to use and more efficient. Moreover, IPv6 eliminates redundancy of complexity and is directed towards speed. Due to this, routers manipulate IPv6 packets better than IPv4 packets. Conversely, IPv4 incurs extra fields, thus consuming more time to process in a large network.
You can have a better look at this by putting both of these headers next to each other. The table below shows the fundamental structural differences of these two protocols
| Feature | IPv4 | IPv6 |
| Header Length | Variable (20–60 bytes) | Fixed (40 bytes) |
| Address Size | 32-bit | 128-bit |
| Complexity | High | Low |
| Processing Speed | Moderate | Faster |
| Efficiency | Lower | Higher |
Thus, the difference between ipv4 and ipv6 becomes clear when you observe how IPv6 reduces overhead and improves performance.
IPv6 Header Structure Simplified
In the current systems, the IPv6 header has a simpler and more effective design, and as a result, network communication companies and networks are more reliable.
1. Version Field Defines Protocol Identity
The Version field distinctly shows the version of the protocol used in the packet. The value in IPv6 is always 6; this helps routers to immediately detect the type of packet. Consequently, the gadgets do not waste time in determining compatibility. This direct identification aids quicker routing choices in networks.
2. Traffic Class Controls Packet Priority
Traffic Class deals with the treatment of the packets in terms of transmission. It enables systems to manage real-time information, such as video or voice, more effectively. So, when there is congestion, important packets will jump the line. This enhances a better user experience within a busy setting.
3. Flow Label Tracks Data Streams
Flow Label enables routers to recognize packets belonging to the same data stream. Because of this, the network can process related packets consistently without delay. It becomes especially useful in streaming or cloud-based services. Consequently, performance remains stable during continuous data transfer.
4. Payload Length Indicates Data Size
Payload Length defines the size of the data content in the packet. It is also not associated with the header size as in the previous protocols, simplifying calculations. Thus, routers are able to handle packets at high speed without adding additional overhead. This helps to improve efficiency.
5. Next Header Identifies Following Protocol
Next Header informs the system about the protocol that follows the IPv6 header. It substitutes multiple fields across previous systems with a particular and clear indicator. Due to this simplification, the handling of packets is simpler. It also provides flexibility for future protocols.
6. Hop Limit Prevents Infinite Loops
Hop Limit ensures that packets do not travel endlessly in the network. Each router reduces its value by one until it reaches zero. Once that happens, the packet gets discarded. This mechanism protects networks from congestion and looping issues.
7. Source Address Represents Sender
The Source Address field stores the sender’s 128-bit address. This large address space supports billions of devices without conflict. Therefore, modern networks rely on IPv6 for scalability. It ensures that every device gets a unique identity.
8. Destination Address Identifies Receiver
The Destination Address field holds the receiver’s address. This ensures that packets reach the correct endpoint without confusion. Because of accurate addressing, communication remains reliable and consistent.
ipv4 and ipv6 diagram: Ethernet Header Integration
Ethernet plays an essential role in packet transmission. Every ipv4 and ipv6 diagram connects with Ethernet because it carries packets across physical networks. Without Ethernet, communication between devices would not function properly. Moreover, Ethernet uses a specific field called EtherType. This field identifies the protocol used in the packet. Therefore, devices can process data correctly based on the protocol type.
As an example, the EtherType value 0x0800 is used in IPv4. Conversely, IPv6 employs 0x86DD. Due to this easy identification of objects, there is no confusion in systems, and there is also no lack of smooth communication. Ethernet is therefore an intermediary between the data link layer and the network layers and ensures the stable delivery of packets.
IPv4 Header Structure Explained
The IPv4 header includes multiple fields that manage different aspects of data transmission, which makes it flexible but slightly complex.
1. Version Field Indicates Protocol Type
The Version field identifies that the packet is an IPv4 packet. This helps routers understand it properly without any confusion. This field is still relevant, as IPv4 is still used in networks. It provides interoperability with older systems.
2. Header Length Defines Size
Header Length determines the size of the header. It may change with optional fields present in the packet. Hence, this value has to be read by routers prior to processing the data. This introduces an additional process in transmission.
3. Type of Service Manages Quality
The type of Service only influences the manner in which the packets behave in relation to delay and reliability. It assists in prioritising some types of data. Consequently, crucial traffic receives improved treatment when in congestion. This enhances the effectiveness of communication.
4. Total Length Shows Packet Size
Total Length determines the total size of the packet (header and data). This will make sure that systems do not handle packets improperly. It also assists in eliminating mistakes during the transmission. Thus, it is the most significant part in the process of packets management.
5. Identification Helps Fragmentation
An identification is used to distinguish packets in fragmentation. This field is used when large data is separated into small portions and these parts are then put back together. Due to this fact, the system ensures the integrity of data. It guarantees that there is proper delivery.
6. Flags Control Fragmentation Behavior
Flags establish the capability of fragmenting a packet. They control the packet splitting in the system. This comes in handy in cases where networks are limited in size. Hence, fragmentation is kept under check.
7. Fragment Offset Supports Reassembly
Fragment Offset indicates the offset of each fragment within the original packet. It guarantees proper reassembling at the destination. This field would be missing, without which the data would not fit. Therefore, it is structured when passing on.
8. TTL Limits Packet Lifetime
TTL defines how long a packet can travel across the network. Each router reduces this value until it reaches zero. This prevents packets from circulating endlessly. Consequently, it protects network resources.
9. Protocol Identifies Next Layer
The protocol shows the next protocol that follows IPv4. It supports systems in processing the packet. Thus, communication is organized and predictable.
10. Header Checksum Ensures Accuracy
Header Checksum ensures the integrity of the header. It identifies mistakes when communicating. But it shows overhead in processing as well. This makes performance a bit slower.
11. Source and Destination Address Fields
Addresses of the senders and receivers are stored in these fields. They guarantee proper device-to-device communication. The small number of addresses makes it problematic that there is a problem with scalability.
12. Options and Padding Add Flexibility
Options permit further adjustments, whereas Padding makes sure things align. These domains are more flexible, yet complex. This leads to sluggish processing.
Difference between ipv4 and ipv6 Explained Through Practical Comparison
The difference between ipv4 and ipv6 becomes easier to understand when you compare their real-world performance. IPv4 is flexible, and IPv6 is efficient and scalable. In addition, IPv6 will remove redundant fields, and this will minimize overhead in processing. Consequently, routers transmit packets with greater speed than in the past and are able to cope with large traffic volumes.
| Aspect | IPv4 | IPv6 |
| Address Space | Limited | Extremely Large |
| Header Fields | More | Fewer |
| Efficiency | Moderate | High |
| Fragmentation | Router + Sender | Sender Only |
| Performance | Slower | Faster |
In addition, IPv6 supports a significantly larger address space. The feature makes the interaction of modern devices unlimited. Hence, the distinction between ipv4 and ipv6 indicates why IPv6 is the future of networking.
ipv4 and ipv6 diagram: Packet Flow and Data Handling
Packet flow explains how data moves across networks. When you analyze an ipv4 and ipv6 diagram, you understand how headers guide each packet step by step.
- First, the system creates data and converts it into packets.
- Next, the header adds routing information.
- Then, routers forward the packet based on destination details.
- Finally, the destination system receives and processes the data.
The fact that IPv6 has a simpler header allows routers to handle packets as much as possible. In its turn, this enhances the work of the network as a whole and decreases the latency.
ipv4 and ipv6 diagram: Learning Importance for Modern Networking
A strong understanding of network structures helps individuals build, manage, and troubleshoot systems effectively.
1. Role in Network Troubleshooting
Professionals often rely on packet structure knowledge to identify issues. When a network slows down, they analyze headers and routing paths. This approach enables them to pinpoint issues in a short time and implement correct solutions.
2. Value for Career Growth
Networking knowledge opens doors to various IT roles. Employers would like to hire people who are aware of how information flows across systems. As such, the knowledge of these concepts enhances employment and career security.
3. Support for Advanced Technologies
Cloud computing and IoT are the products of modern technologies that rely upon effective networking. In the absence of a clear understanding of the structures of packets, it is not easy to manage these systems. As a result, specialists have to study these fundamentals in order to deal with such sophisticated platforms.
4. Practical Application in Daily Systems
Even basic internet usage depends on these concepts. Online communication, browsing, and streaming are based on site of a smooth packet handling. Therefore, knowledge about such structures assists users to value the way systems operate in the backset.
Conclusion
The ipv4 and ipv6 diagram can make the workings of Internet communication a little more legitimate to you. It describes the functioning of the packets, the functioning of the headers and why IPv6 is better at performance. Thus, the knowledge of these concepts creates a powerful networking base.
In addition, with a clear distinction of the difference between ipv4 and ipv6, you can use the information in practical applications. Regardless of whether you are in the field of IT or you are studying networking, this knowledge serves as an asset over time and confidence in the technical field.
